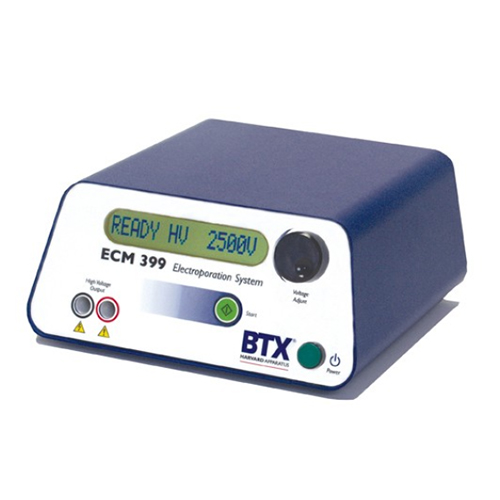

The economical BTX ECM 399 is an exponential decay wave electroporation generator specifically designed to deliver the field strengths and pulse lengths required for the simple transformation of bacteria and yeast cells. In low voltage mode, the ECM 399 has a limited capability for transfecting some mammalian cell lines.
System comprises: ECM 399 Generator, PEP, Cuvettes 1 mm, 2 mm, 4 mm, pk 30 (10 each) and Cuvette Rack 660.
Display Type 16-character liquid crystal LCD backlit
Controls Single rotary knob with push button toggle to set parameters, On/Off power and Start switches
Input 110V / 220V Universal
Charge Time 5 sec maximum (without delay)
Voltage Range LV Mode: 2 – 500V / 2V resolution; HV Mode: 10 – 2,500V / 10V resolution
Capacitance LV Mode: 1,050µF fixed; HV Mode: 36µF fixed
Resistance LV Mode: 150ohm fixed, HV Mode: 150ohm fixed
Maximum Voltage Output 2,500 Volts Peak
Maximum Pulse Length 125ms at 500V peak or 5ms at 2,500V peak
Safety Generator short circuit proof
Operating Conditions 10°C to 40°C, 60%RH
Power Source Voltage 100 to 240VAC, 50 to 60Hz, CAT I
Fusing 2.5A, T rating 250V
Dimensions (WxDxH) 9.1″ x 7.7″ x 4.3″
