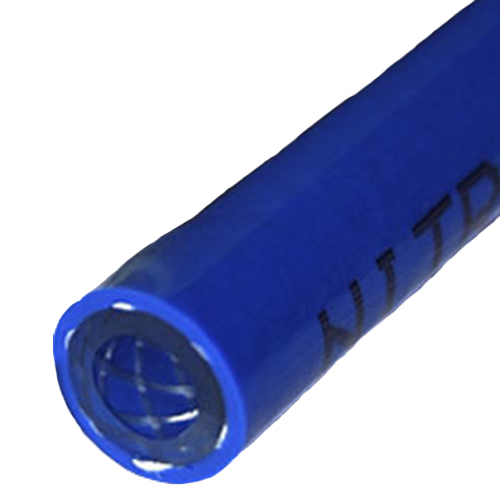

The Blue 6.7mm Phthalate Free PU ESD Medical Gas Hose (Nitrous Oxide) is designed to fulfill all the current and future requirements for medical gas hoses. All the materials used are USP VI compliant.
The raw material used is composed of ingredients, which meet the current requirements of the FDA for food contact applications when used in accordance with the requirements and limitations of 21 CFR:175.105; 177:1680 for repeat use applications only; 177:2600.
Gas Type: Nitrous Oxide
Coil Length (m): 30
Internal Diameter (mm): 6.7
External Diameter (mm): 12.7
Stripe Width (mm): 2.8
Materials: USP VI ESD TPU (Liner and Cover) and USP VI TPU (Gas Barrier Layer)
Liner and Cover Resistivity: 1.1 x E11 (ASTM D-257)
Burst Pressure: 10,000 kPa (100 Bar) at 23°C
Internal Dimensions (mm): Conforms to EN ISO 1307
Layer Adhesion: 5.5kN/m (min.) – EN ISO 8033
Deformation Under Pressure: 1.9% (diameter) and 1% (length) at 1400kPa
Occlusion Resistance: No flow reduction (BS EN ISO 5359:2008, Clause 5.7)
Contaminant Test: No indication (Gastec Polytec 107 tubes)
Minimum Life Cycle: 5 years at 23°C and ambient humidity
