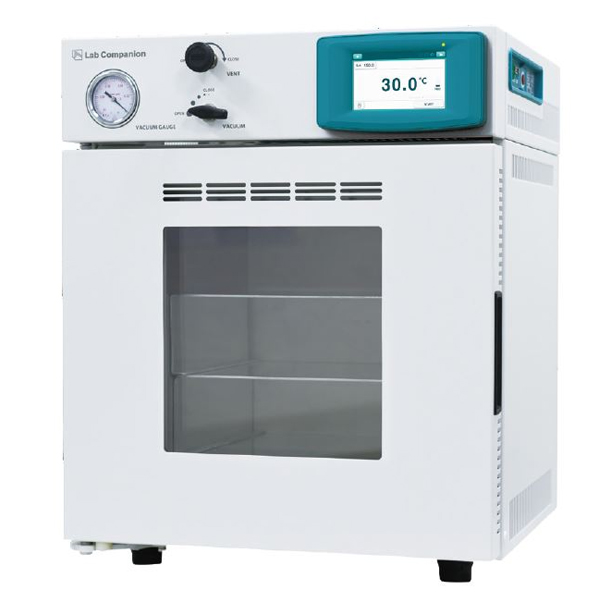

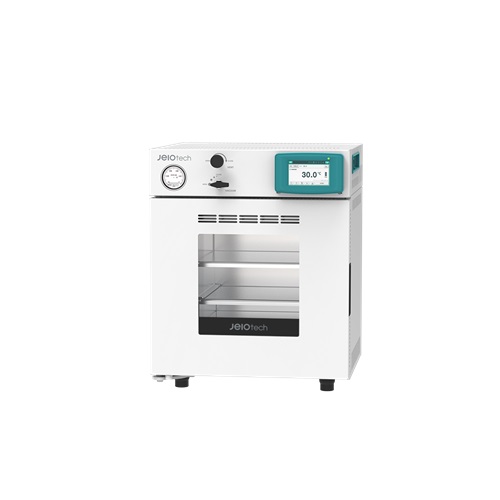

28 Litre Vacuum Oven

SKU: AAH13315K


The new 28 Litre Lab Companion, OV4 series of  vacuum ovens from Jeiotech providing exceptional temperature stability.

Working temperature range up to 250°C and heat up time from 65 minutes.

Use this quote list to submit your required products to Medline in order for a quotation.


28 Litre vacuum oven with a temperature range of up to 250°C, the OV4 Series Vacuum Ovens are suitable for various test applications (e.g. agricultural genetics, drying of plant tissue, drug metabolism) and optimally constructed to separate solvents from solutions or dry solvents with high boiling points.

Additional information

Pack Size


• Temperature variation up to ±1.5℃ at 100℃ according to
DIN 12880:2007standards
• Outer surfaces remain safe to touch even whilst operating at
the highest temperature, preventing possible burns when viewing
samples via the inspection window
• 5inch color touch display for intuitive operation
• Wide temperature range that can be controlled up to 250℃
• 3-point temperature calibration improves temperature accuracy in the entire area.
• Monitor and control via mobile app anytime, anywhere via LC Connected. (mobile monitoring system) – Optional
• Polycarbonate safety cover provided to protect a user in case of tempered glass breakage


Chamber Volume (L) 28

Vacuum Range (MPa) 0 to 0.1

No. of Shelves (standard / max) 2 / 3

Maximum load per shelf (Kg) 20

Temperature Range (°C) Amb. +15 to 250

Fluctuation at 100°C ± 0.1

Variation at 100°C ± 1.5

Internal Dimensions (W x D x H) mm 302 x 305 x 302

External Dimensions (W x D x H) mm 537 x 522 x 655

Net Weight (Kg) 69


Click here for download View File
