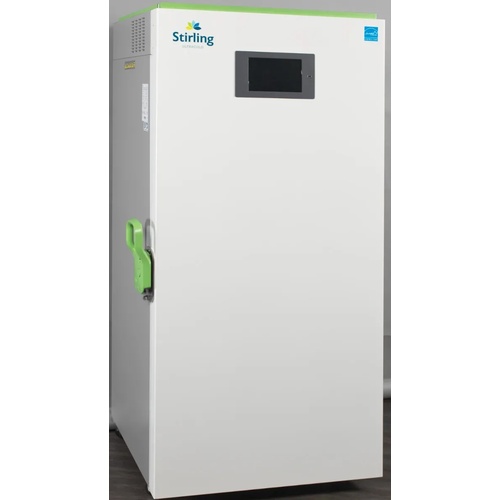

Stirling Ultracold VAULT100 PRO 795L Ultra Low Temperature Freezer

SKU: STIRVAULT100PRO

POA

​Designed for laboratories that cannot afford compromise, the Stirling Ultracold VAULT100 PRO ULT freezer delivers superior sample protection, faster recovery, lower operating costs, and simplified serviceability.​​​​​​​​​

Description

​The Stirling Ultracold VAULT100 PRO​ delivers superior sample protection, faster recovery, lower operating costs, and simplified serviceability.​​​​​​​​​

  • ​Temperature range: -100°C to -20°C
  • Quick Change free-piston Stirling Engine
  • Industry-leading temperature uniformity
  • Rapid temperature recovery after door openings
  • Adaptive cooling technology eliminates traditional on/off cycling
  • Samples remain protected even during routine access events​

​The VAULT100 PRO maintains exceptionally stable storage conditions, helping preserve valuable samples and minimise temperature excursions.

Unlike traditional ULT freezers that can require lengthy refrigeration repairs, the VAULT100 PRO features a bolt-on condenser assembly that allows refrigeration system replacement in approximately one hour. This innovative design enables service to be completed before product temperatures reach critical thresholds, helping safeguard valuable research and biological materials.​

​Built for Maximum Uptime

The Stirling Ultracold VAULT100 PRO​ features a quick-change refrigeration system that allows qualified service personnel to replace critical refrigeration components in approximately one hour—without hot work requirements​.

​Benefits include:

  • Industry-leading reliability
  • Fastest mean time to repair
  • Six-year engine and thermosiphon warranty
  • Fewer service disruptions
  • Reduced operational risk​

Powered by Stirling engine technology with only two moving parts, the VAULT100 PRO eliminates many of the failure points associated with traditional compressor-based systems.​



Specification

Application, rating and electric data Application Storage of general (non-flammable) laboratory materials
Storage Volume 795 liters (28 cu.ft.)
Storage Capacity 600 standard 2” boxes in optional racks, optional 700-box system, available separately
Temperature Range -100°C to -20°C (-148°F to -4°F) adjustable to 1°C increments
Electric Power 120-240VAC at 50/60Hz
Maximum Power (Current) 1200 watts (5 amps @240V), nominal
Auto-Voltage Capability 120-240VAC at 50/60Hz (accepting universal inputs)
Electric Supply Rating 15 amp or greater grounded circuit
Certification / Agency Listing cULus, CE, and ENERGY STAR®
Noise < 42 dB(A) at 1 meter from front of freezer in steady state operation
Internet Connectivity Optional Ethernet connection transmitting in BACnet™
Refrigeration system Cooling Engine Helium-charged (10-gr) free-piston Stirling engine with continuous modulation and quick change capability
Heat Transport System Gravity driven thermosiphon
Refrigerant R-170 (Ethane) 105 grams (3.7 oz)
Evaporator Cold wall (inner liner)
Heat Rejection Finned heat exchanger with forced air cooling. Air inlet: Right side of top cover, through air filter Air outlet: Left side of top cover, upward
Defrost Method Manual
Performance data Steady State Energy Use (ENERGY STAR® Final Test Method) 20-Position Temperature 6°C* at -80°C Uniformity 6.6 kWh/day at -75°C
Door Opening Recovery (Energy Star® Final Test Method) 26 minutes to SS at -80°C

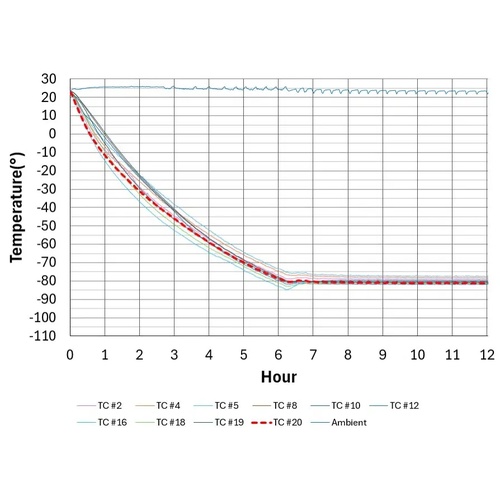

Pull-Down from 25°C Ambient 6.0 hours @ ambient to -80°C

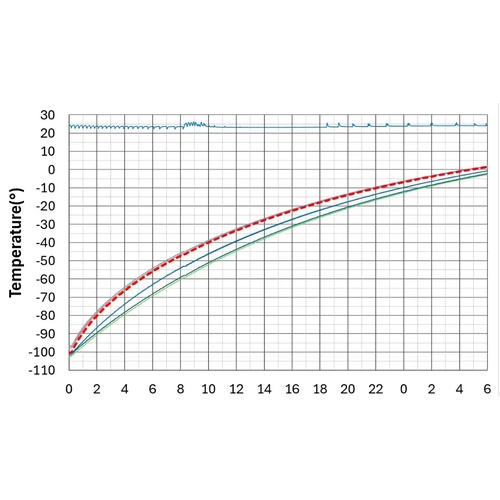

Warm-up Profile 7.8 hours to -40ºC at -80°C (Empty Cabinet) 2.7 hours to -60ºC at -80°C (Empty Cabinet)
Heat Dissipation steady state at -75°C (6 door openings) 825 Btu/h @ steady state at -75°C. 978 Btu/h @
Dimensions and Construction Interior WxDxH (mm) 732 x 706 x 1542
Exterior WxDxH (mm) 915 x 871 x 1996
Net Weight, Five Shelves No Load 300 kg (660 lbs.)
Shipping Weight 345 kg (760 lbs.)

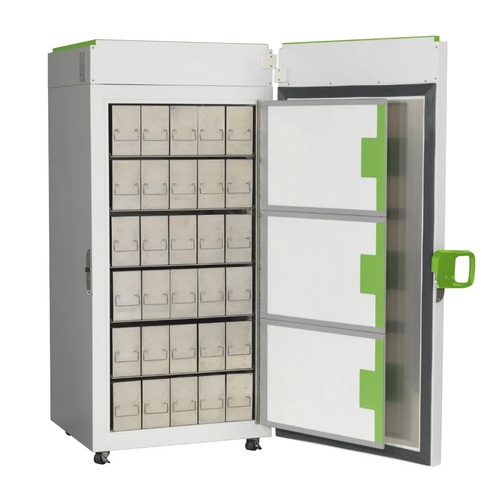

Shelves 5 stainless steel, adjustable in 12.7 mm increments
Inner Doors 3 insulated with magnetic latches
Options CO₂ and LN2 back-up systems, additional shelves, international plug(s), 4-20 mA – Temperature transmitter: 0°C to -100°C (4-20mA), loop power (8 to 35 VDC) is required

Features

Explosion Rating: Spark Free

Nominal temperature: -100°C

Configuration: Upright

Max Volume Litres: 795

Lockable: Yes

Low/High Temperature Alarm: Yes

Downloads

Vault100 Pro Datasheet

Vault100 Pro Brochure
