Sound Abating Chamber for Sonics VCX-130 Sonicators

SKU: SON630-0451

£1,341.01

This Sound Abating Enclosure permits extended processing without discomfort by reducing the sound by approximately 35db. Outside white laminate. Transparent door. Inside lined with white, waterproof, noise abating material. Support rod and converter clamp included. Note: Only for VCX-130 series sonicators

Use this quote list to submit your required products to Medline in order for a quotation.

Description

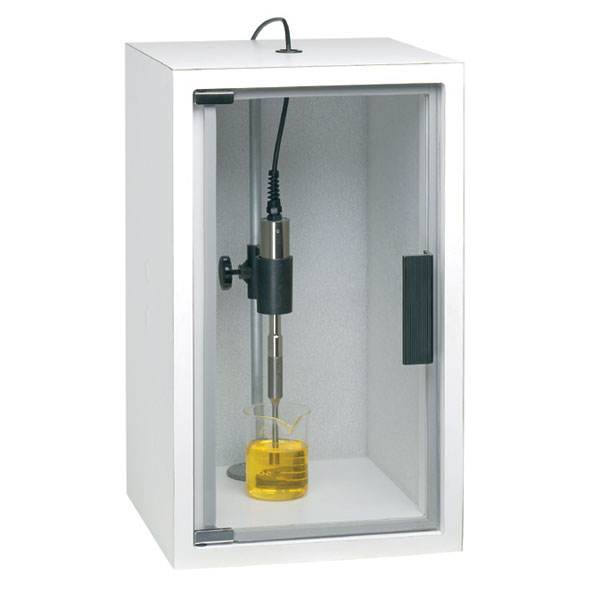

Even though ultrasonic vibrations are above the human audible range, ultrasonic processing produces a high pitched noise in the form of harmonics, which emanate from the vessel walls and the liquid surface. The Sound Abating Enclosure permits extended processing without discomfort by reducing the sound by approximately 35db. The probe/converter assembly is supported by the converter clamp, and the converter cable is fed through the 19mm opening at the top. Side access ports accommodate the tubing delivering the coolant and the sample to the processing vessel while the door is closed. The unit is faced on the exterior with white laminate and lined on the interior with white waterproof polyethylene noise abating material. The transparent access door permits observation during treatment and protects the operator against accidental splashing. Support rod and converter clamp are included.

Features

Support rod and converter clamp are included

Side access ports accommodate tubing delivering

The unit is faced on the exterior with white laminate and lined on the interior with white waterproof polyethylene noise abating material

The transparent access door permits observation during treatment and protects the operator against accidental splashing

Specification

Outside dimensions; H x W x D (mm)     510 x 300 x 300

Inside dimensions; H x W x D (mm)     432 x 229 x 240
