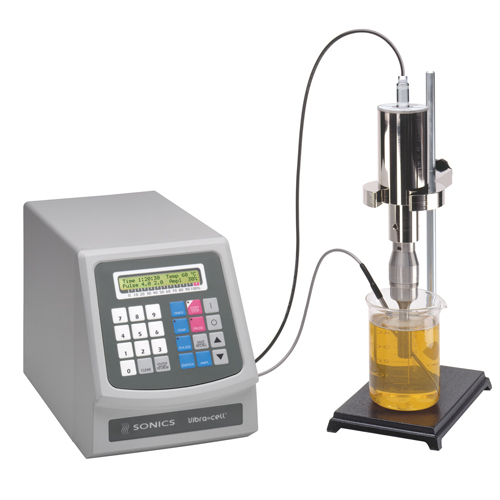

Sonics VCX-750 Ultrasonic Processor



The Sonics VCX-750 Ultrasonic Processor is a 750 watt laboratory sonicator designed to safely process a wide range of organic and inorganic materials from 250 microlitres to 1 litre.

Use this quote list to submit your required products to Medline in order for a quotation.


The Sonics VCX-750 Ultrasonic Processor is a 750 watt laboratory sonicator designed to safely process a wide range of organic and inorganic materials from 250 microlitres to 1 litre. Typical applications include nanotechnology (producing nanoparticle materials and Graphene dispersions), cell lysing, sample preparation, homogenisation, ChIP Assay, emulsification, disaggregation and deagglomeration, plus uses in the field of sonochemical processing.

3 Year Warranty


Exclusive Energy Setpoint: The energy set point continuously monitors the amount of energy in Joules (watts x seconds), that is being delivered to the probe and terminates the ultrasonics when the desired amount of energy has been dispensed

Wattmeter: Digitally displays the actual amount of power in watts that is being delivered to the probe

Automatic Tuning and Frequency Control: Eliminates the need for constant adjustment of the power supply

Integrated Temperature Controller: Preludes harmful overheating of the sample and guarantees process integrity by terminating the ultrasonics when the sample temperature reaches a predetermined limit. Enables process control and monitoring from 1 to 100°C

Consistent Reproducibility: Time-saving user-programmed presets store up to ten procedures to facilitate protocol duplication, automate repetitive tasks and eliminate technician-to-technician method variability

Microprocessor Based – Programmable: Digital accuracy and repeatability guarantee adherence to the most existing protocol

Automatic Update Compensation: Ensures uniform probe amplitude regardless of the varying loading conditions encountered during the processing cycle

On Demand Real Time Display: Provides a window on the process. No more assumptions. Pressing a button enables all set and run parameters to be continuously displayed on the screen, providing instant mode confirmation without process interruption

Variable Power Output Control: Allows the ultrasonic variations at the probe tip to be set to any desired amplitude. Selected output level is clearly displayed on the screen

Ten Hour Process Timer: Controls the processing time and the duration of processing.

Elapsed Time Indicator: Monitors both the elapsed time and the duration of processing

Independent On/Off Pulser: Enable safe treatment of temperature-sensitive samples at high intensity and provides mixing by repeatedly allowing the sample to settle back under the probe after each burst. Both on and off cycles are independently controllable from 1 to 59 seconds

User Friendly: Menu driven fill-in-the-blank prompts provide intuitive guidance through all functions

Smallest Footprint in its Class: Ultra-compact design eases emplacement and optimises bench space. Only 190 x 340mm

Power Supply: Remote actuation compatible



Net Power Output     750W, Frequency 20kHz

Dimensions; H x W x D (mm)     235 x 190 x 340

Weight (Kg)     6.8

Remote actuation     Compatible

CONVERTER (Part No. CV 334) Piezoelectric lead zirconate titanate crystals (PZT)

Diameter (mm)     63.5

Length (mm)     183

Weight (g)     900

STANDARD PROBE (Part No. SON630-0220) (Note: Standard probe has a replaceable tip. If using low surface tension solvents we will replace the standard probe with a solid probe. Please advise)

Length (mm)     136

Weight (g)     340

Cable Length (m)     1.8

Tip Diameter (mm)     13

Processing Capability (ml)     50 to 250 (Note: Optional probes are available to extend the capacity to 1000ml)

Construction     Titanium alloy Ti-6Al-4V, autoclavable


Optional     Allows sample temperature to be monitored up to 100°C

TOOL KIT      Supplied with one open end wrench Part No. SON888-00026, and one blue spanner wrench Part No. SON888-00041 for the converter and one red spanner wrench Part No. SON888-00042 for the probe


Unless otherwise requested, units are shipped wired for 230V, 50/60Hz with a UK plug. Please specify desired voltage option if not for use in the UK


Click here for download View File
