Description

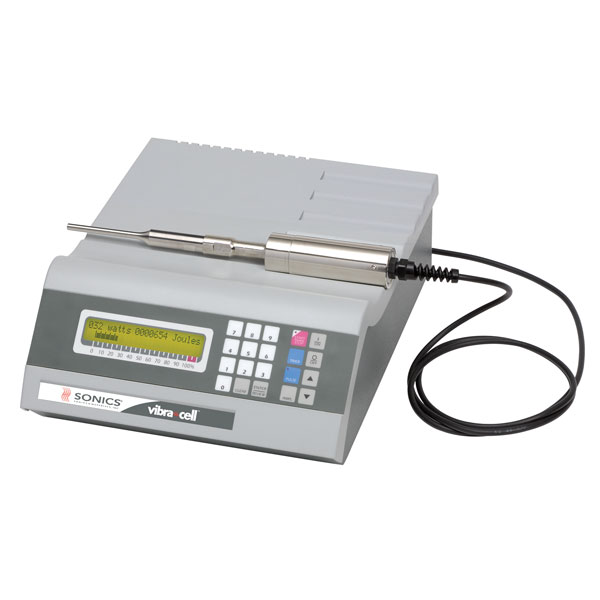

The Sonics VCX-130 Ultrasonic Processor is suitable for small volume applications. It includes an energy meter, variable power output control, a 1 second to 10 hour timer plus a programmable (1 to 59 seconds) pulser to safely process a wide range of organic and inorganic materials from 150 microlitres to 150 millilitres. Typical applications include biotechnology and pharmaceutical processing (mixing, dispersion and sample preparation). Remote actuation is possible via the optional footswitch.
For working with any sonicator within a laboratory environment we recommend enclosing the probe assembly within a sound abating chamber.
The standard 6mm probe is suitable for processing volumes from 10 to 50ml. To process volumes smaller than 10ml or larger than 50ml a different probe would be required (please contact us to discuss your requirements).
3 Year Warranty
Features
Energy monitor
Digital wattmeter
Automatic tuning
Automatic amplitude compensation
Microprocessor based – programmable
Ten hour timer
1.59 second independent ON/OFF pulser
Elapsed time indicator
Variable power output control
Remote actuation and foot-switch compatible power supply
Autoclavable standard probe
Specification
POWER SUPPLY
Net Power Output 130W, Frequency 20kHz
Dimensions; H x W x D (mm) 115 x 250 x 320
Weight (Kg) 3
Timer Variable from 1 second to 10 hours
Pulser On and Off cycles (independently controllable from 1 second to 59 seconds)
Remote actuation Compatible
Footswitch Compatible. Can be run continuously, timed or in a pulsing mode
CONVERTER (Part No. CV 18)
Piezoelectric lead zirconate titanate crystals (PZT)
STANDARD PROBE (Part No. SON630-0435)
Diameter (mm) 32
Length (mm) 146
Weight (g) 340
Cable Length (m) 1.5
Tip Diameter (mm) 6
Processing Capability (ml) 0.2 to 10
Note: Optional probes are available to extend the capacity to 150ml
Length (mm) 138
Construction Titanium alloy Ti-6Al-4V, autoclavable
ELECTRICAL REQUIREMENTS
Unless otherwise requested, units are shipped wired for 230V, 50/60Hz with a UK plug. Please specify desired voltage option if not for use in the UK
