Description

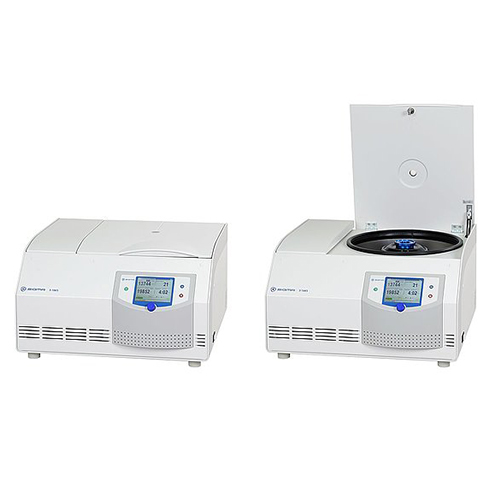

Featuring patented user-friendly one-button control (Spincontrol S) and a motorised lid lock, the Sigma 3-18KHS is ideal for demanding users who need extended operating features.
The centrifuge is designed for routine and research tasks in laboratories.
LED illumination, a choice of five languages, speed up to 18,000rpm, and a broad range of accessories are just a few of the benefits. The Sigma 3-18KHS additionally features integrated heating (max. rotor temperature +40°C to +60°C depending on rotor and speed). As an option, the Sigma 3-18KHS can be operated with inert gas.
Supplied without a rotor.
Features
Spincontrol S controller
Programs: 60
Acceleration curves: 10 linear, 10 quadratic, 10 user definable
Deceleration curves: 10 linear, 10 quadratic, 10 user definable
Cycle counting: Yes
Specification
Power supply: 220-240 V, 50/60Hz
Power consumption (W): 1,010
Max. capacity (ml): 4 x 400
Max. speed (rpm): 18,000
Max. RCF: 30,070 xg
Min. speed (rpm): 100
Dimensions HxWxD (mm): 355x630x600
Height with open lid (mm): 785
Interference suppression: EN 61326
Weight without rotor (kg): 78
Kinetic energy max. (Nm): 22.989
Noise level at max. speed (approx.) (dB(A)):
Rotor 12154 at 15.300 rpm: 66
Rotor 11132 at 5.000 rpm: 60 dB
Max. acceleration (s):
Rotor 12154: 28
Rotor 11132: 20
Max. deceleration (s):
Rotor 12154: 53
Rotor 11132: 12
Temperature setting range: -20°C to +60°C
Rotor 11132 5,500 rpm: < 2°C
Rotor 12154 18,000 rpm: < 4°C
