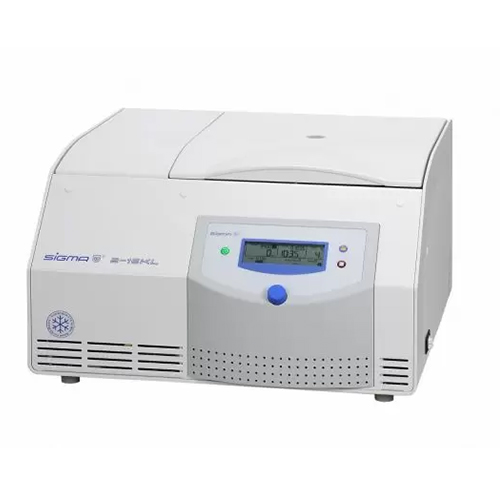

Sigma 2-16KL Refrigerated Centrifuge

SKU: 10350


Sigma 2-16KL Refrigerated Centrifuge is a compact, general-purpose model with all the essential features you expect in an all-rounder. Rotors must be ordered separately.

Use this quote list to submit your required products to Medline in order for a quotation.


Concentrating on the essentials…

This compact, general-purpose Sigma refrigerated centrifuge has all the essential features you expect in an all-rounder. It also boasts patented, intuitive one-button control with user-friendly illuminated buttons, as well as a convenient safety feature: cycle counting for each rotor with an indication when the rated limit is reached. Easily achieves +4°C at maximum speed.

Supplied without a rotor.


Universal laboratory centrifuge for swing-out and fixed-angle rotors
Spincontrol Universal controller
Backlit Start, Stop, and Lid Open buttons
Sedimentation in swing-out vials up to 4 x 100 ml or up to 20,000 x g in fixed-angle rotor
Zero-maintenance brushless drive
Rotor identification prevents overspeed operation
Stainless-steel centrifuge bowl
Imbalance switch
Easy lid opening with gas spring support
Window in lid for independent speed checking
Produced in compliance with the latest national and international standards (e.g. EN 61010-2-020)
Rotor cooling also possible at standstill; CFC-free R134a refrigerant
Calibration certificate available at an additional cost – please enquire for a quote


Power supply: 230V / 50Hz or 120V / 60Hz
Power consumption drive (W): 280
Power consumption refrig. (W): 260
Maximum rotational speed (rpm): 15,300
Minimum rotational speed (rpm): 100
Maximum capacity (ml): 4 x 100
Interference suppression: EN 55.011 / B
Dimensions HxWxD (mm): 310x550x570
Weight without accessories (kg): 60
Max. kinetic energy (Nm): 9.962
Noise level at max. speed (approx.) (dB (A))
Rotor 12148: 65
Rotor 11190: 63
Max. acceleration (s):
Rotor 12148: 34
Rotor 11190: 32
Max. deceleration (s):
Rotor 12148: 28
Rotor 11190: 18
