Description

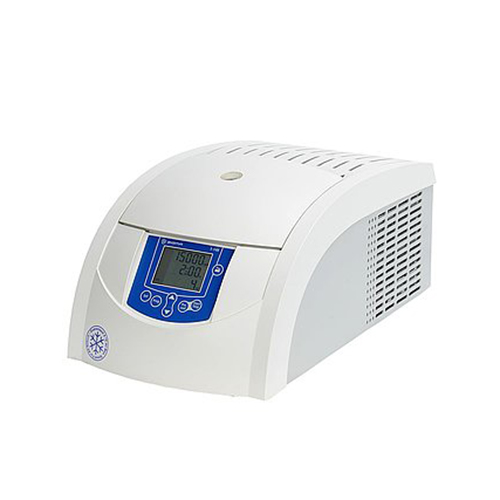

The Sigma 1-14K refrigerated microfuge is an essential tool for any biotechnology, medical and research facility. With the refrigerator function available, alongside its slim design, the Sigma 1-14K is the ideal solution for any laboratory where space is at a premium.
A popular choice for microbiology applications such as DNA, RNA and protein isolation, clinical chemistry, and university research laboratories.
The pre-cooling function allows the centrifuge chamber and accessories to be cooled to a defined temperature.
Supplied with 24×1.5/2.2 ml Aluminium Rotor and Snap-on Lid.
Features
Large capacity 24 x 1.5 – 2.2 ml
Top speed 15,000 rpm = 16.602 x g
Min. speed 200 rpm = 2 x g
Short acceleration and deceleration
Low temperature increase during run
Two acceleration and deceleration curves
Motorised lid lock
Maintenance-free induction drive motor
RoHS conform
Stainless steel bowl
Rapid cooling program
10 programs
Refrigerant R134a (CFC-free)
Temperature setting range -10 to +40 °C
Specification
Power consumption (W): 230
Max. capacity (ml): 24 x 2.2
Acceleration and deceleration curves: 2
Max. rotational speed (1/min): 15,000
Min. rotational speed (1/min): 200
Dimensions HxDxW (mm): 236x515x273
Weight without rotor (kg): 19
Max. kinetic energy (Nm): 1768
Interference suppression: EN 61326
Max. acceleration rotor 12092: 14 sec
Max. acceleration rotor 12084: 21 sec
Max. acceleration rotor 12094: 14 sec
Max. deceleration rotor 12092: 13 sec
Max. deceleration rotor 12084: 18 sec
Temperature: Constant 4°C
Maintenance-free induction drive motor
Short- and continuous run, 99 min. timer
Motorised lid lock
