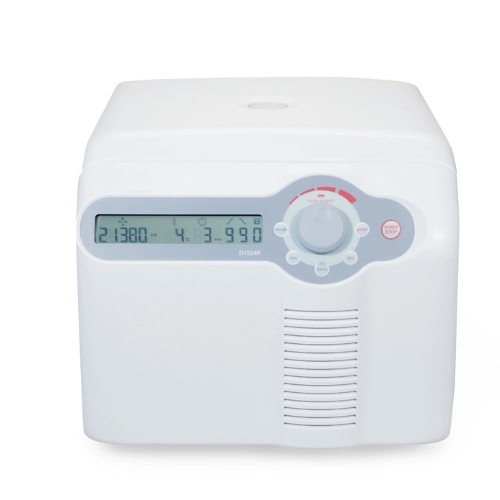

SciSpin Refrigerated Microfuge 24R with 24 x 1.5/2.2 ml Rotor (SS-6091)

SKU: SS-6001


The SciSpin Refrigerated Microfuge 24R is a high speed microcentrifuge which couples excellent performance with exceptional value.

Use this quote list to submit your required products to Medline in order for a quotation.


The SciSpin refrigerated microfuge 24R comes complete with a hermetically sealed 24-place rotor for 1.5/2.2 ml microtubes as standard. A series of additional rotors provides flexibility for use with 0.2 ml, 0.5 ml and 5 ml tubes together with PCR strips.

The microcentrifuge is quiet and reliable at maximum speed and comes with an imbalance detector and auto-lid lock facility for enhanced safe operation. Gentle braking at low speed provides for the most efficient separation processes.

Comes complete with sealed rotor and lid for 24 x 1.5/2.2 ml microtubes.


  • Powerful cooling
  • Max Speed: 15,000 rpm / 21,380 xg
  • Large LCD display
  • Spins 24 x 1.5/2.2 ml or 36 x 0.2/0.5 ml
  • 5 ml tube rotor available
  • 9 program memory
  • Sealed rotors
  • Autolid lock
  • Rotor imbalance alarm
  • Fluorine-free refrigerant


Max Speed: 5,000 rpm (200-15,000 rpm) in 100 rpm increments
Max RCF: 21,380 ×g, in steps: 10 ×g
Capacity: 24×1.5/2 ml, 36×0.5 ml, 4×8 PCR, 12×5 ml, 18×5 ml
Temperature Range: -20 °C to 40 °C
Run Time: 30 s-99 min; HOLD (Continuous running)
Acceleration and Deceleration Time: 25s↑25s↓
Motor Type: DC Brushless Motor
Safety Performance: Dual Door Lock, Over-speed Detection, Over-temperature Detection with Internal Diagnosis System

Power Requirements: Single-phase, 200-240 V, 50/60 Hz, 500 W
Noise: ≤56 dB
Dimensions (WxDxH): 332×553×283 mm
Weight: 30 Kg
Other Functions: Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Acceleration/ deceleration in 9 steps, program storage capacity
Warranty: 2 Years

Rotors for SciSpin Microfuge 24R
Capacity 18 x 5 ml
Hole Diameter (mm) 13.7
Hole Depth (mm) 39.00
Max. Tube Length (mm) 56.5

Capacity 12 x 5 ml
Hole Diameter (mm) 17.5
Hole Depth (mm) 44.00
Max. Tube Length (mm) 56.5

Capacity 24 x 2 ml
Hole Diameter (mm) 11.2
Hole Depth (mm) 40.5
Max. Tube Length (mm) 54.2

Capacity 36 x 0.5 ml
Hole Diameter (mm) 8.2
Hole Depth (mm) 29.3
Max. Tube Length (mm) 36.0

Capacity 32 x 0.2 ml
Hole Diameter (mm) 6.5
Hole Depth (mm) 20.4
Max. Tube Length (mm) 36.0
