PreciPoint O8 Digital Microscope Scanner

SKU: 9557.0008


The PreciPoint O8 Digital Microscope Scanner is supplied as an all-in-one system, allowing local and remote users to carefully examine specimens using low magnification as well as high power, oil immersion objectives.

Use this quote list to submit your required products to Medline in order for a quotation.


The PreciPoint O8 Digital Microscope Scanner is constructed as an all-in-one system, allowing users to carefully examine specimens using low magnification or oil-immersion objectives.

Apart from usual examination techniques of a single objective field of view and its scanning function, this microscope scanner features “Live-Stitching” that enables a larger field of view to be formed within a few seconds without objectives needing to be switched. The specimen can potentially be moved through as individual images are captured and stitched together at the same time.

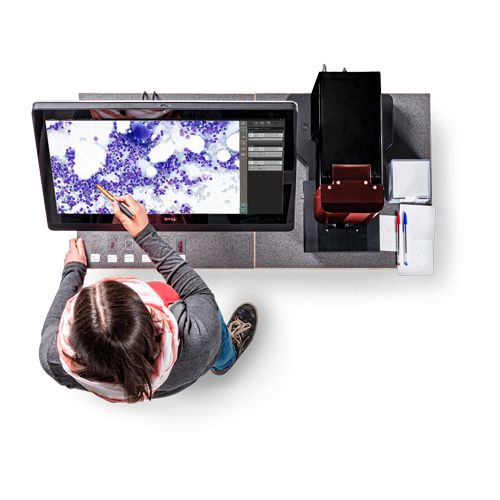

PreciPoint’s O8 is a dual purpose microscope and whole slide scanner with live remote control functionality. Although the O8 can be controlled via a Windows PC with a 2K (or, preferably, 4K) monitor, the best experience comes when using a high resolution touch screen computer – making it a truly “hands on” digital microscope. The intuitive software allows for easy navigation through your microscope slides with just the touch of your fingers. Perfect for frozen section consultations.

With everything automated and digitised, there is no need for oculars and manual focus knobs and no need for the condenser to be focussed and centred. Everything can be controlled remotely and working with a touchscreen computer, a tablet or a smartphone makes you feel as if you could examine the sample with your own hands, literally! The M8 is the most ergonomic and intuitive microscope/scanner on the market today.

The PreciPoint O8 digital microscope enables you to work from anywhere at any time. Access and operate the O8 remotely and in real-time (telepathology); connect, share and discuss your findings with your colleagues and specialists from all over the world.


• Whole Slide Scanning: Scan whole slides and selected regions of interest with supporting objectives ranging from 20x to 100x in oil or air
• All-in-one device: The O8 is equipped with three different operating modes tailored to diverse workflows – Live, Instant Scan (large field of view within seconds at high resolution), Slide Scan (15 x 15mm area in 1hr with 100x oil objective). With these three modes combined, the O8 serves as both a microscope and scanner. It allows you to directly work on your sample, perform various analyses (annotations and measurements), and to scan your slides for documentation and future viewing. Presents an overview picture of the sample (barcode scanning on request)
• Empower your application: The O8 is perfect for various demanding applications such as haematology and oncology research
• Live remote control: Control the O8 from anywhere at anytime simultaneously with colleagues for second opinions
Transmitted light
• Easy, intuitive, and ergonomic handling via touch screen
• Automated Z-axis; Z-stacking
• Operating software “MicroPoint” included
• Viewer software “ViewPoint” included
• Cloud and image analysis


Stage:  25 x 75mm (2 slides) or 50 x 75mm (1 slide) – automated x/y stage

Supported Objectives:  50x, 60x or 100x oil plus 20x and 40x non-oil

Dimensions; W x D x H (mm):  450 x 400 x 300

Weight (Kg):  25


Click here for download View File
