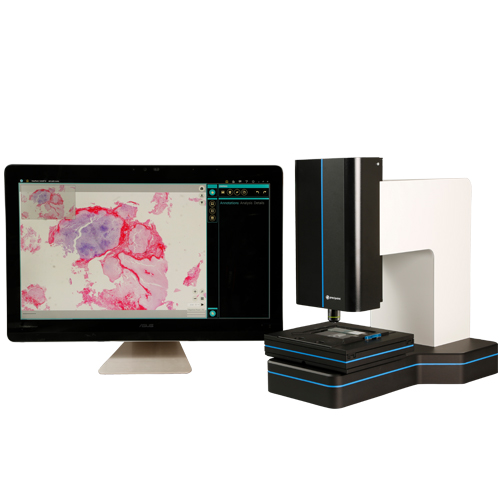

PreciPoint M8 Digital Microscope Scanner

SKU: 9557.8888
BRAND:

£44,485.06

The PreciPoint M8 Digital Microscope Scanner is supplied as an all-in-one system, allowing local and remote users to carefully examine specimens using low power objectives.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The PreciPoint M8 Digital Microscope Scanner is constructed as an all-in-one system, allowing users to carefully examine specimens using low magnification objectives.

Apart from usual examination techniques of a single objective field of view and its scanning function, this microscope scanner features “Live-Stitching” that enables a larger field of view to be formed within a few seconds without objectives needing to be switched. The specimen can potentially be moved through as individual images are captured and stitched together at the same time.

PreciPoint’s M8 is a dual purpose microscope and whole slide scanner with live remote control functionality. Although the M8 can be controlled via a Windows PC with a 2K (or, preferably, 4K) monitor, the best experience comes when using a high resolution touch screen computer – making it a truly “hands on” digital microscope. The intuitive software allows for easy navigation through your microscope slides with just the touch of your fingers. Perfect for frozen section consultations.

With everything automated and digitised, there is no need for oculars and manual focus knobs and no need for the condenser to be focussed and centred. Everything can be controlled remotely and working with a touchscreen computer, a tablet or a smartphone makes you feel as if you could examine the sample with your own hands, literally! The M8 is the most ergonomic and intuitive microscope/scanner on the market today.

The PreciPoint M8 digital microscope enables you to work from anywhere at any time. Access and operate the M8 remotely and in real-time (telepathology); connect, share and discuss your findings with your colleagues and specialists from all over the world.

Features

• Overall picture of both slides on the stage
• Live stitching; combination of individual pictures quickly taken at the highest resolution of the objective to create a full screen single picture
• Supported objectives: 20x & 40x with options for 60x and 100x. Contact us for detailed specifications.
• Easy, instinctive and convenient handling via touch screen
• Scans (full or parts) and screen shots created within 60 seconds
• Four different scanning modes (quality, speed)
• Automated Z-axis focussing; Z-stacking
• Annotations, measurements and image manipulations (CSV/XLS, VPA, FPF)
• Image Formats: PNG, JPEG, TIFF, BMP, VMIC, HTML
• Remote, real-time access
• Optional software-based applications and analytics

Specification

Stage:  25 x 75mm (2 slides) or 50 x 75mm (1 slide) – automated x/y stage

Supported Objectives:  20x and 40x non-oil (plus optional 50x, 60x and 100x non-oil

Dimensions; W x D x H (mm):  450 x 400 x 300

Weight (Kg):  25
