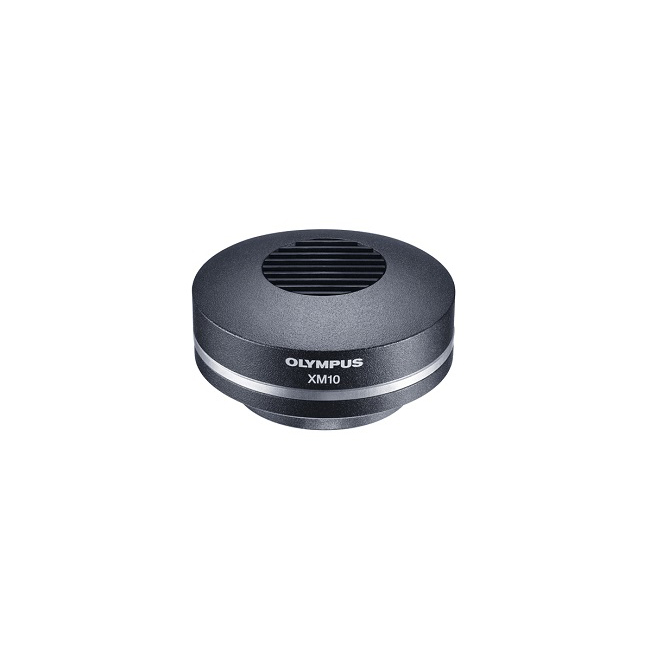

Olympus XM10-2 PCIE 1.4 Megapixel, 2/3 inch, Monochrome CCD Microscope Camera

SKU: OLYE9700095
BRAND:

£8,028.71

The Olympus XM10-2 PCIE 1.4 Megapixel, 2/3 inch, Monochrome CCD Microscope Camera is Peltier cooled for capturing superb images in challenging lighting conditions and is especially suitable for fluorescence applications. 14 bit dynamic range.

Including Firewire? card (PCIe) for desktop PC, Firewire cable and Instruction Manual

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The XM10 monochrome digital microscope camera is suitable for a range of fluorescence imaging applications. If you work with fluorescent dyes in the near-infrared (IR) region, such as Cy5 and Cy7, the XM10-IR microscope camera provides outstanding image quality – please contact us for details.

The sensitive 11mm (2/3in) monochrome CCD image sensor provides a maximum resolution of 1376 ? 1032 pixels with 14-bit dynamic range and 15 frames per second (fps) at full resolution.

Large 6.45?m pitch sensor with 10?C cooling (at up to 25?C ambient temperature) delivers excellent resolution and sensitivity. Up to 160 second exposure time. Three binning modes – 2 ? 2, 4 ? 4, and 8 ? 8 – for higher sensitivity and a faster frame rate so that you can focus quickly, reducing phototoxicity.

The system automatically switches between binning mode for live streaming and high resolution mode for image acquisition to reduce photobleaching while optimising the setting parameters.

Specification

Image Sensor     2/3 inch monochrome CCD

Resolution (max.)     1376 (W) × 1032 (H) pixels

Pixel Size (μm)     6.45 × 6.45

Binning     2 × 2, 4 × 4 and 8 x 8

A/D Converter     14 bits

Exposure Times     0.1ms – 160s

Live Frame Rates (fps)     15 at 1376 × 1032 pixels, 28 at 688 × 516 pixels, 50 at 344 × 258 pixels and 106 at 172 × 129 pixels

Cooling System     Peltier, 10°C at 25°C ambient

External Trigger     Optional

Data Transfer     FireWire™ IEEE 1394a

Partial Readout     Yes

PC Control     Windows 10 (32/64 bit), Windows 8.1 (32/64 bit) and Windows 7 (32/64 bit)

Stand Alone     No

Options     Optional trigger and IR versions
