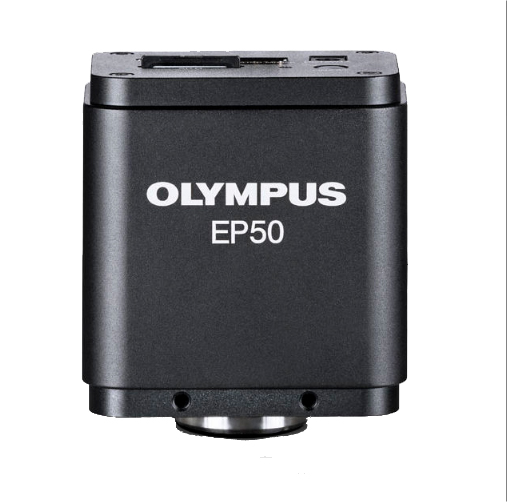

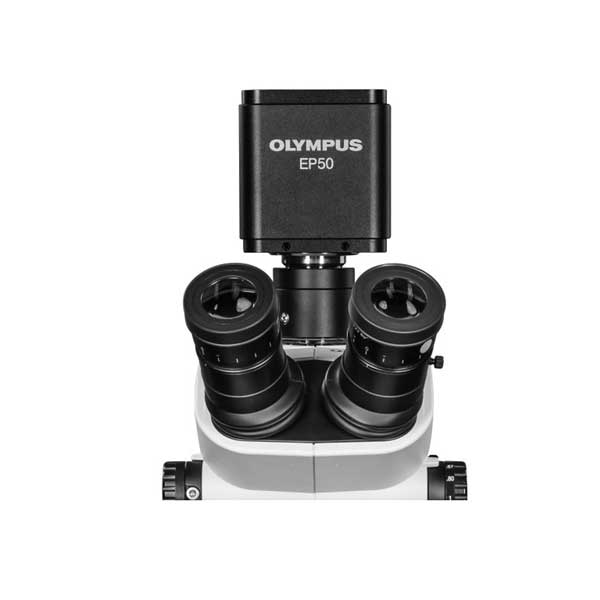

Olympus EP50 Wireless 5 Megapixel Colour Microscope CMOS Camera Kit complete with 0.5x C-Mount for Olympus Microscopes

SKU: OLYE0432449


The Olympus EP50 Kit is a wireless 5 megapixel microscope camera kit complete with 0.5x C-Mount for Olympus microscopes. This is an ideal camera for individual laboratory use or use within a teaching environment. The free EP50view app can be uploaded via the Apple App Store or Google Play and can be installed on mobile devices, laptops or desktop computers (Windows, Android or Mac compatible).

Including: USB 2.0 mouse, HDMI cable, power adapter, USB-to-Ethernet Adaptor (AX88772C Chip set), 16 GB SD card, 0.5x Olympus C-Mount adapter and Quick Start Guide.

Note that the EP50 is not suitable for clinical diagnostic use. If you wish to mount this camera onto a non-Olympus microscope we suggest that you purchase the EP50 camera alone (OLYE9701256).

Use this quote list to submit your required products to Medline in order for a quotation.


Breaking away from static microscope labs, the EP50 camera and WLAN adaptor can transform the classroom into a dynamic, interactive space.
– Flexible camera control and viewing options – connect using mobile devices or WLAN-enabled PCs/laptops via wireless or wired LAN connection
– High quality, crisp, 5 megapixel images
– Fast frame rates enable students to navigate quickly through the specimen

The flexible camera control and viewing options offered by the complimentary EPview app software expand interaction and collaboration possibilities:

– Control the EP50 camera using the EPview app for mobile devices or software for PCs/laptops
– Up to 6 users can connect their devices to the same WLAN-enabled EP50 camera
– Access the images of other EP50 cameras in the classroom
– Capture, process, store and share the EP50 camera’s images through the easy-to-use software interface
– Simultaneous live image output via WLAN and HDMI
– The EPview app/software is free-of-charge

Lecturers and students can both benefit from the image sharing, viewing, and storage options of the EP50 WLAN-enabled camera:

– Live stream images to a group of students on their mobile devices or WLAN-enabled PCs/laptops
– Display specimen images on a high-resolution monitor, projector or interactive white board connected to the camera?s HDMI port
– Present Full HD videos
– Connect an SD card and save captured image data for further analysis

Students can experience a digital-image-supported learning process:

– Students can work comfortably, on their own or in collaboration, using the camera?s On-Screen Display (OSD) imaging software
– The OSD software is simple and intuitive
– Easily capture, view and process specimen images and movies
– Save images for further investigation on an SD card


Image Sensor     1/1.8 inch Colour CMOS

Resolution (max.)     2592 (W) × 1944 (H) pixels (Snapshot only), 1920 (W) × 1080 (H) pixels (HDMI, WLAN, on PC)

Pixel Size (μm)     2.4 × 2.4

Binning     No

A/D Converter     8 bits

Exposure Times (msec)     1 – 918

Live Frame Rates (fps)     Up to 30 (Full HD 16:9 on PC), up to 60 (HDMI Output) and up to 25 (WLAN Output)

Cooling System     No

External Trigger     No

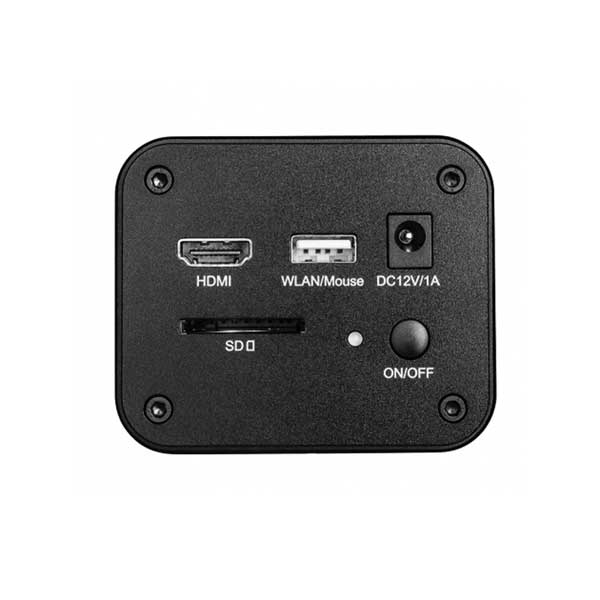

Data Transfer     HDMI, WLAN (using the WLAN adaptor), Ethernet (using the USB-to-Ethernet adaptor)

Partial Readout     Yes

PC Control     Windows 10 (32/64 bit), Windows 8.1 (32/64 bit) and Windows 7 (32/64 bit)

Stand Alone     Yes
