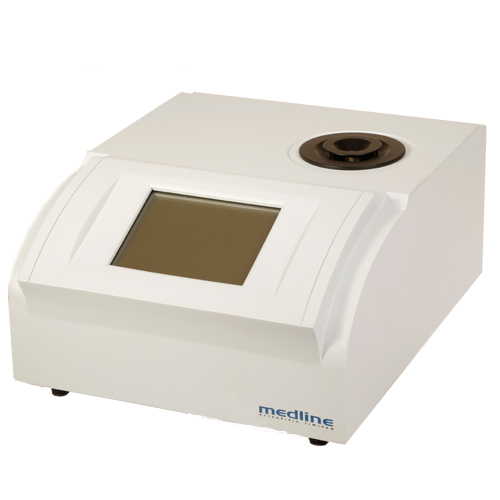

Medline MD400C Melting Point Apparatus

SKU: MD400C

£4,044.81

Used to measure melting points, the advanced Medline MD400C Melting Point Apparatus has a measurement range of up to 400�C. The temperature is controlled using PID (Proportional Integral Derivative) and PWM (Pulse Width Modulation) controllers.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Used to measure melting points, the advanced Medline MD400C Melting Point Apparatus has a measurement range of up to 400°C. The temperature is controlled using PID (Proportional Integral Derivative) and PWM (Pulse Width Modulation) controllers.

This unit can be used in the production of medicines, dye-stuffs, perfumes and other organic crystal substances.

Features

• Touch screen control
• Uses PID (Proportional Integral Derivative) and PWM (Pulse Width Modulation) controllers to control the temperature
• USB and RS-232 interfaces
• Instantly records the melting point curve
• Three samples can be measured at the same time. Automatic calculation of the average value of initial and final melting points

Specification

Measurement Range (°C):  Amb. to +400

Minimum Digital Display (°C):  0.1

Size of the Capillary (mm):  Ø 1.4 (O.D.), Ø 1.0 (I.D.), 80 (length)

Loading Height of the Sample (mm):  3

Linear Heating-Up Rate: 0’1°C to 20°C/min

Accuracy (°C):  <200: ±0.5; >200: ±0.8

Dimensions; W x D x H (mm):  440 x 490 x 320

Weight (Kg):  11.5
