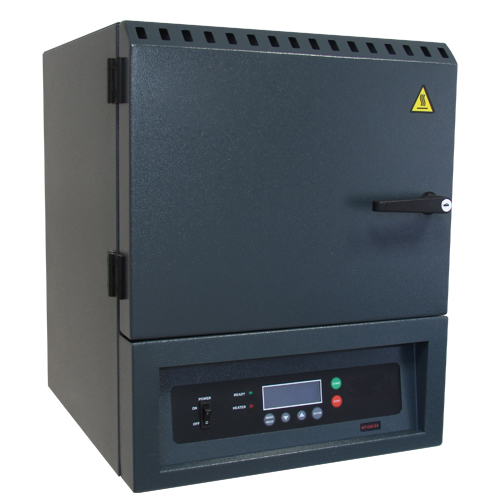

Medline MD1340, 40 Litre Chamber Furnace

SKU: MD1340

£7,609.27

Medline’s MD1340, 40 Litre Chamber Furnace provide a strong level of versatility without compromising quality, safety or reliability.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Medline’s MD1340, 40 Litre Chamber Furnace provide a strong level of versatility without compromising quality, safety or reliability.

Furnaces can be used in quality control tests, ashing, heat treatment, preheating, melting, metallurgical research and sample production. Our products have been produced for heavy duty conditions.

Features

  • Chamber walls made up of insulating fire bricks with protection against mechanical abrasion and thermal ageing and deformation
  • Hidden heaters in two sides and on top (housed in quartz tubes)
  • Tight door closing mechanism. Homogeneous temperature gradient in the chamber thanks to similar heat loss in every direction
  • Optimal insulation thickness to reduce the temperature of the outer surface
  • No contact between outer shell and chamber for low surface temperature
  • Standard chimney with fan
  • Side-hinged door

Specification

Volume (L):  40

Continuous Working Temperature (°C):  1250

Max. Temperature (°C):  1300

Dimensions; W x D x H (mm)

     Chamber:  300 x 300 x 450

     External:  550 x 740 x 770

Weight (Kg):  100

Downloads

Click here for download View File
