Sale!

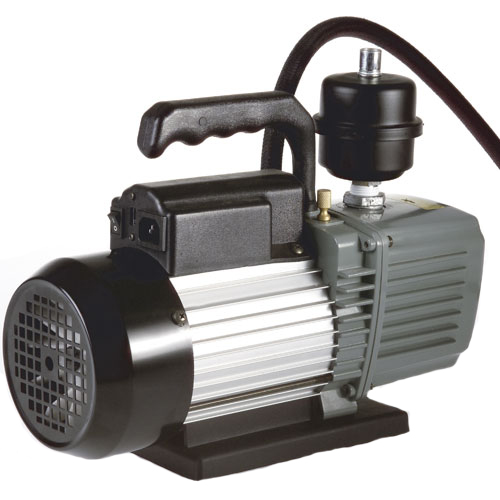

Medline CCMD4 Rotary Vane Vacuum Pump

SKU: MED-141C

£1,201.29 £840.00

Equipped with a direct connect oil seal to prevent air reflux, Medline’s CCMD4 Rotary Vane Vacuum Pump is specially designed for vacuum ovens to achieve a higher level of vacuum pressure.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Equipped with a direct connect oil seal to prevent air reflux, Medline’s CCMD4 Rotary Vane Vacuum Pump is specially designed for vacuum ovens to achieve a higher level of vacuum pressure. An oil mist trap is included to prevent oil vapours entering the laboratory. Recommended for use with Jeio Tech’s Vacuum Ovens (OV Series).

Features

Equipped with a direct connect oil seal to prevent air reflux, this pump is specially designed for vacuum ovens to achieve a higher level of vacuum pressure and stability.

Specification

Stages:  2

Pumping Speed (L/min):  140

Ultimate Vacuum (mbar):  5 x 10-3

Gas Ballast:  Yes

Oil Capacity (ml): 450

Inlet/Outlet Port (DN):  8mm Hose Tail

Oil Mist Eliminator (Exhaust Outlet):  Fitted

Dimensions; W x D x H (mm): 178 x 375 x 330

Weight (Kg):  12
