Medline 110 Litre -86°C Ultra Low Temperature (ULT) Freezer

SKU: MDULF11086

£7,905.69

The Medline LabCare+ 110 Litre -86 Ultra Low Temperature (ULT) Freezer is one of the most advanced and secure freezers available for the storage of your invaluable samples.

After Sales Service

Service Contract

Use this quote list to submit your required products to Medline in order for a quotation.

Description

This LabCare+ 110 litre Medline ULT Freezer reliably maintains a stable, set temperature down to -86°C and features natural, biodegradable HC cooling gases. This Ultra Low Temperature Freezer satisfies the demand for the safe, long-term storage of high-value materials and samples. This freezer incorporates a tried and tested single stage refrigeration system which, combined with an optional liquid CO2 backup system, provides a critical level of protection that is unmatched in the marketplace.

Features

The Medline LabCare+ 110 litre -86°C Ultra Low Temperature Freezer satisfies the demand for the safe, long-term storage of high-value materials and samples. The tried and tested single stage refrigeration system, with natural, biodegradable HC cooling gases, especially when combined with an optional liquid CO2 backup system, provides a critical level of protection that is unmatched in the marketplace.

  • 5″ Graphic LCD touchscreen controller provides easy programming and greater accuracy of temperature control
  • Temperature control range from -40°C to -86°C with datalogger and USB data download port
  • Maximum protection thanks with visual and acoustic alarm signals, used in case of; power failure, temperature deviations, probe failure, open door after 10 – 60 seconds, low battery or filter saturation
  • All condenser units are tested in helium chambers to check for refrigerant leaks
  • Natural, biodegradable HC cooling gases
  • 120mm, high quality, CFC-free, VIP (Vacuum Insulation Panel) insulation. Solid door with lock
  • Low power consumption and noise levels

• EASY AND INTUITIVE – with large graphical touchscreen control

• PRECISE CONTROL – NTC probes with a precision of 0.1oC

• POWER FAILURE INDICATOR – with 48h battery backup (72h optionally)

• OPTIONAL RECORDS – circular recorder, Bluetooth or SD card records

• AUDIBLE AND VISIBLE ALARMS – for maximum and minimum temperatures, probe failures and open door

• REMOTE ALARM – dry contact for remote alarm

• OPTIONAL FEATURES – USB port, Bluetooth data logger, battery, RS 485 output…

• NUMERIC PASSWORD – control system protected with numeric password

Specification

Operating Temperature (°C) -40  / ‐86
Net Capacity (Litres) 110
External Dimensions; W x D x H (mm) 1092 x 783 x 820
Internal Dimensions; W x D x H (mm) 490 x 481 x 530
Door Opening; W x H (mm) 517 x 527

Access Ports 3

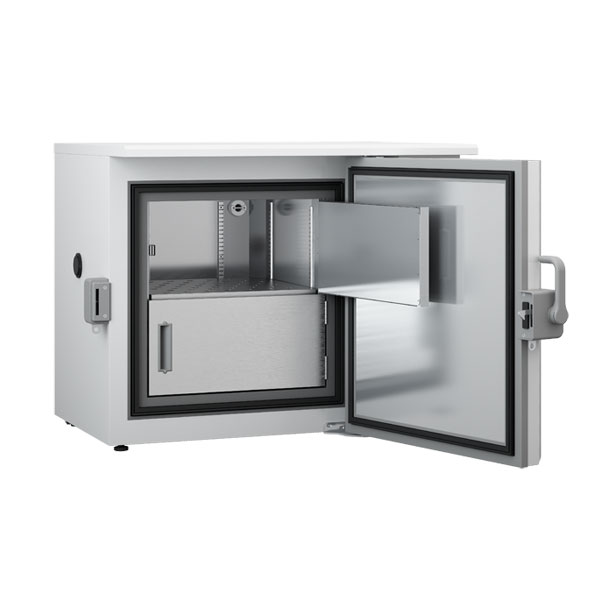

Doors 1 outer, 2 inner
Outer Door Construction
– Solid hinged door with integrated handle, heated gasket, key lock and front document holder
‐ Single‐handed operation
– Easy to replace double door gasket
‐ Door open sensor
Shelves 1, 474 x 470mm (W x D), stainless steel
Compartments 2
Feet Adjustable feet with lockable castors
Digital Plus Controller
‐ PT1000 temperature probe with precision of 0.1°C on the display
‐ Audible and visual warning functions in case of maximum and minimum temperature deviation, power failure, probe failure, open door
‐ Volt‐free contact
‐ USB port
‐ RS485 remote control interface port
‐ Datalogger (historical alarms and temperatures)
Backup Battery 48 hours
Defrost Manual
Refrigerant R600a / R1150
Power Consumption (kWh/24h) 7.30
Noise Level (dB) 48
