Description

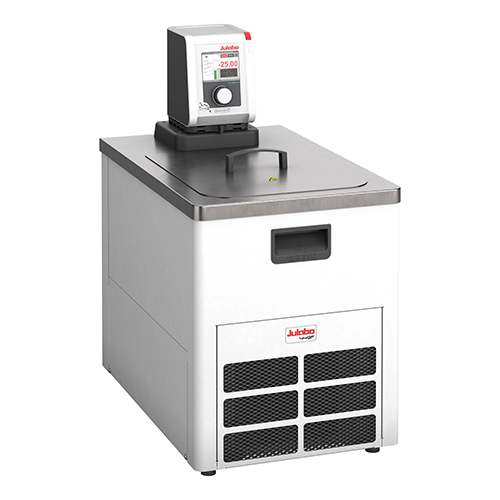

The Julabo DYNEO DD-449F refrigerated and heating circulator is ideal for basic research, materials testing, technical systems and more. This model is suitable for internal and external applications with easy switch over between the two.
The DYNEO series offer high heating/cooling capacities for short heat-up and cool-down times. The DD-449F is designed to be energy efficient and uses environmentally friendly natural refrigerant.
Its space-saving cooling coil design delivers more usable space in the bath tank. The DD-449F’s large bath volume makes the unit ideal for precisely tempering larger or a variety of different samples in the bath.
Specification
Temperature (°C)
Range: -32°C to +200
Setting Resolution: 0.01
Stability: ±0.01
Volume (L): 21 to 30
Pump
Flow Pressure (bar): 0.1 to 0.7
Flow Rate (l/min): 8 to 27
Heating Capacity (kW): 2
Cooling Capacity (Ethanol) (kW)
@ 20°C: 0.44
@ 0°C: 0.35
@ -10°C: 0.27
@ -20°C: 0.20
@ -30°C: 0.06
Timer (hr.min): 0.00 to 99.59
Usable Bath Opening (W x L / D) (mm): 280 x 350 / 200
External Dimensions W x L x H (mm): 370 x 590 x 690
Weight (Kg): 39.5
Barbed Fittings (ID) (mm): 8/12
Pump Connections: M16 x 1 (male)
Ambient Temperature (°C): +5 to +40
Performance specifications measured in accordance with DIN 12876. Cooling capacities up to 20°C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
Note about natural refrigerants:
Temperature control units using natural refrigerants are often subject to regulatory requirements regarding the installation site, operation, transport or disposal of the units.
