Description

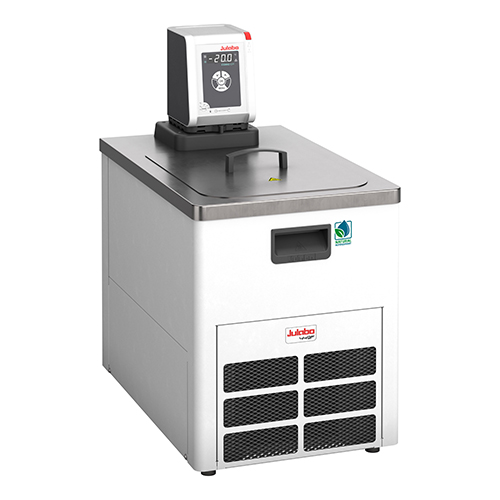

The Julabo CORIO CD-449F refrigerated and heating circulator is ideal for all standard tasks and routine work in laboratories and industry. This model is suitable for internal and external applications with easy switch over between the two.
The CORIO series offer great price-to-performance ratio. The CD-449F is designed to be energy efficient and uses environmentally friendly natural refrigerant.
Its space-saving cooling coil design delivers more usable space in the bath tank. The CD-449F’s large bath volume is suitable for precisely tempering larger samples or a variety of different samples.
Supplied with 2 barbed fittings for tubing 8 and 12mm ID. Pump connections are M16x1 male.
Specification
Temperature (°C)
Range: -32°C to +150
Setting Resolution: 0.1
Stability: ±0.03
Volume (L): 21 to 30
Pump
Max. Flow Pressure (bar): 0.35
Max. Flow Rate (l/min): 15
Heating Capacity (kW): 2
Cooling Capacity (Ethanol) (kW)
@ 20°C: 0.45
@ 0°C: 0.36
@ -10°C: 0.28
@ -20°C: 0.21
@ -30°C: 0.07
Usable Bath Opening (W x L / D) (mm): 280 x 350 / 200
External Dimensions W x L x H (mm): 370 x 590 x 690
Weight (Kg): 39.5
Barbed Fittings (ID) (mm): 8/12
Pump Connections: M16 x 1 (male)
Ambient Temperature (°C): +5 to +40
Performance specifications measured in accordance with DIN 12876. Cooling capacities up to 20°C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
Note about natural refrigerants:
Temperature control units using natural refrigerants are often subject to regulatory requirements regarding the installation site, operation, transport or disposal of the units.
