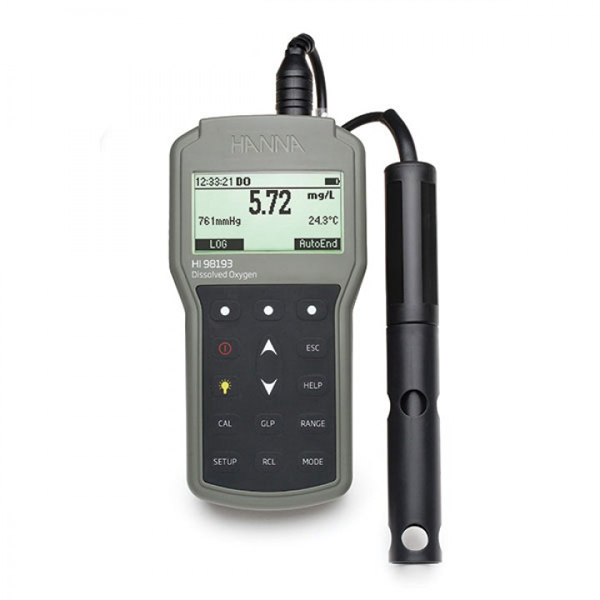

Hanna HI-98193 Professional Waterproof Dissolved Oxygen and BOD Meter

SKU: HANHI-98193

£847.53

Hanna HI-98193 Professional Waterproof Dissolved Oxygen and BOD Meter complete with dissolved oxygen/temperature probe on a 4m long cable – supplied in attaché case

Use this quote list to submit your required products to Medline in order for a quotation.

Description

When measuring dissolved oxygen, compensations for salinity, temperature and pressure are essential to improve the accuracy and precision of readings.

Salinity compensation allows for direct determination of dissolved oxygen in saline waters. Temperature compensation is automatic with the probes built-in sensor, which features a one or two-point calibration. Pressure compensation with the meter’s built-in barometer can be validated against a reference barometer, and if needed, can be recalibrated in user-selectable units (mmHg, inHg, atm, psi, kPa, mbar). With the internal barometer, the HI-98193 is able to compensate for changes in barometric pressure so there is no need for charts, altitude information or external barometric pressure information.

Other features include measurement, methods and calculations for BOD, OUR and SOUR.

Features

Quick connect probe – The HI-764073 polarographic dissolved oxygen probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.

Data Logging – The HI-98193s log-on demand features allows users to store up to 400 samples that can be later transferred to a PC with the HI-920015 USB cable and HI-92000 software.

GLP and On-Screen Help – Comprehensive GL data is directly accessible by pressing the GLP key; the contextual help menu can be accessed to obtain on-screen information and assistance at the touch of a button.

IP67 rated waterproof, rugged enclosure

Salinity compensation – users can set the salinity value

Automatic pressure compensation – built-in barometer with user-selectable units (mmHg, inHg, atm, psi, kPa, mbar)

Built-in calculations – determination of Biochemical Oxygen Demand (BOD), Oxygen Uptake Rate (OUR) and Specific Oxygen Uptake Rate (SOUR)

Automatic polarisation of probe at startup

Ready to use PTFE preformed membrane caps

Approximately 200 hours of continuous use

Specification

DO Range 0.00 to 50.00mg/L (ppm); 0.0 to 600.0% saturation
Resolution 0.01mg/L (ppm); 0.1% saturation
Accuracy @25°C ±1.5% of reading ±1 digit
Calibration automatic one or two point at 100% (8.26 mg/L) and 0 % (0mg/L); manual one point using a value entered by the user in % saturation or mg/L
Atmospheric Pressure – Range 450 to 850mmHg
Resolution 1mmHg
Accuracy @ 25°C ±3mmHg within ±15% from the calibration point
Temperature Compensation automatic from 0.0 to 50.0°C
Probe HI-764073 polarographic DO probe with protective sleeve, internal temperature sensor, DIN connector and 4m cable (included)
Logging log-on demand up to 400 samples
PC Connectivity opto-isolated USB (with HI-92000 software)
Battery Type/Life 1.5V AA batteries (4)/ approximately 200 hours of continuous use without backlight
(50 hours with backlight)
Auto-off user-selectable: 5, 10, 30, 60 min or can be displayed
Environment 0 to 50°C; RH 100% IP67
Dimensions 185 x 93 x 35.2mm
Calibration one point at any in range pressure value
Temperature Range -20.0 to 120.0°C
Resolution 0.1°C
Accuracy @25°C ±0.2°C (excluding probe error)
Calibration one or two point at any in range temperature value
Additional Specifications – Measurement Modes DO; BOD; OUR; SOUR
Barometric Compensation automatic from 450 to 850mmHg
Salinity Compensation automatic from 0 to 70 g/L
Weight 400g
Ordering Information: HI-98193 is supplied with HI-764073 DO probe (4m cable), preformed PTFE membrane cap (2),
HI-7041S electrolyte solution (30 mL), HI-7040 bicomponent zero oxygen solution, 100 mL plastic
beakers (2), HI-92000 PC software, HI-920015 micro USB cable, 1.5V AA batteries (4), instruction
manual, quick start guide, instrument quality certificate and HI-760193 rugged carrying case.
